Red Dot Digital Media was hired by a Los Angeles-based banking institution to design and deploy an interactive koi pond as part of a larger office remodel project
June 20, 2023 – Red Dot Digital Media was hired by a Los Angeles-based banking institution to design and deploy an interactive koi pond as part of a larger office remodel project. The project, located in the 2Cal building at California Plaza in the Bunker Hill area of Downtown LA, is a centerpiece of the bank’s corporate headquarters and has become a popular gathering point for employees throughout the day.

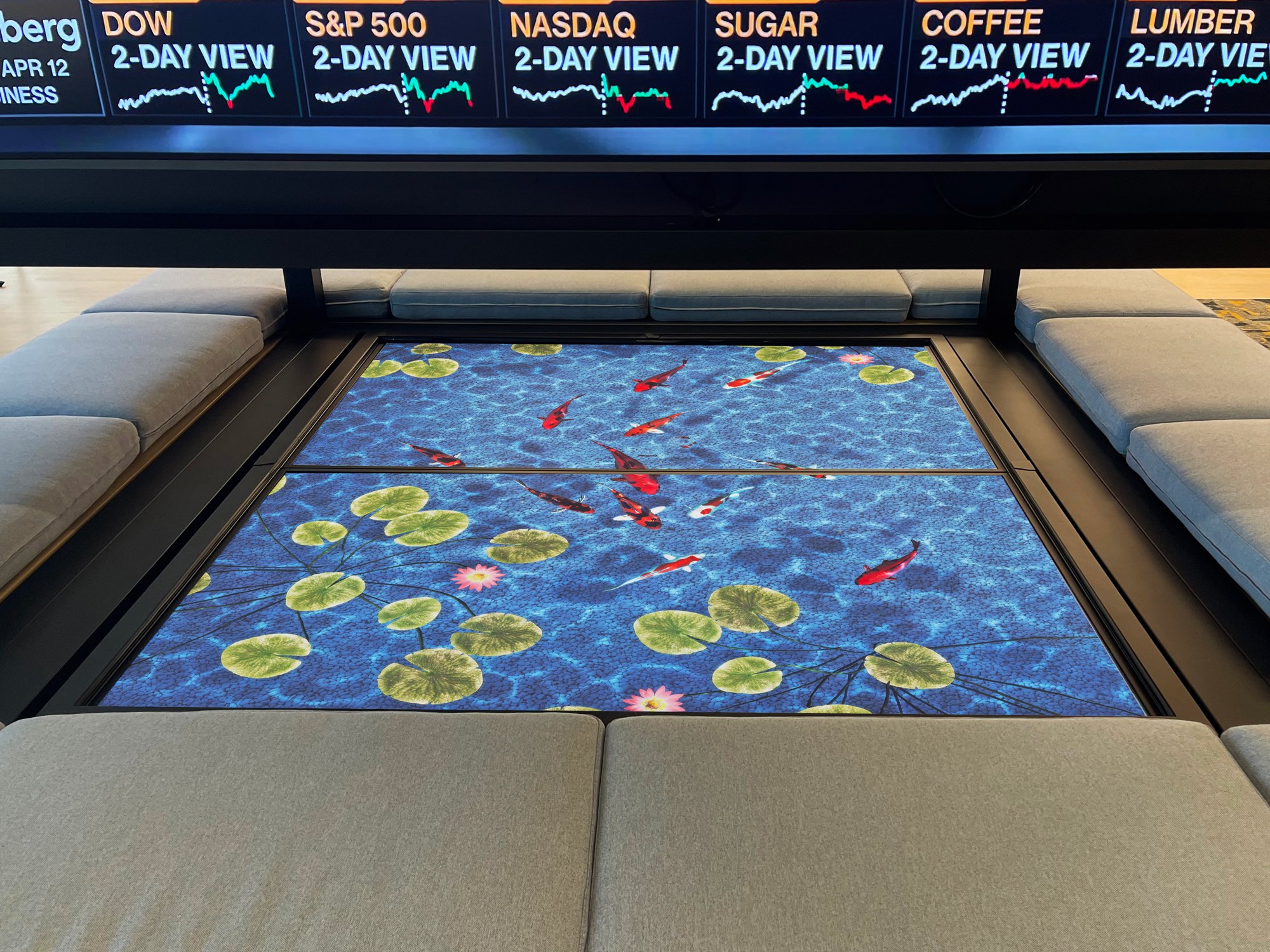

The koi pond is comprised of a pair of 85-inch NEC displays connected to a PC, joined side-byside and mounted face up, with a large TSItouch overlay turning the two screens into a single, large interactive touch screen. The displays can also be connected to a BrightSign HD224 media player split to both screens to temporarily display preloaded content whenever the PC is taken offline for maintenance or to perform content updates.
The koi are designed to swim around in randomized patterns, and they respond to touch. A tap of the glass drops fish food to draw the fish over, much like they would in their natural environment. Similarly, when someone swipes their hand on the glass, the surface of the water is disrupted and ripples emanate outward – the fish scurry away and the aquatic plants respond as the water current is disrupted.
In addition to the interactive elements, the koi pond is fully customizable with the ability to change the color of the water, while adding logs, rocks and three types of aquatic plants. A total of 20 different koi can be added to the pond, each with distinct colors, patterns and sizes.
“Integrating a virtual koi pond into a corporate setting is one of the most creative digital signage applications we’ve been involved with in quite some time. It’s visually striking and not something you expect to see in a corporate setting. But what’s most impressive about this project are the interactive capabilities that draw people in and invite them to interact with the virtual environment in ways they might not expect at first glance”
– Darryl Kuder, President of Red Dot
Adjustments can also be made to change the color of the bottom of the pond, while adding or removing leaves and lilies from the pond’s surface.
The pond is set to automatically reflect the time of day, with a 24-hour cycle that dynamically changes the ambient brightness and the angle of shadows cast on the bottom of the pond depending on where the sun shines at different times of day.
Perhaps the most striking attribute of the interactive koi pond is the ability to virtually feed the koi. An intuitive touch-interactive menu lets people select the food they wish to offer and scatter the food in the pond with a simple tap of the glass. The koi recognize where the food is dropped and they eagerly swim to and eat the pellets as they fall to
the bottom of the pond.
“From a distance the koi pond is visually stunning, but people really light up when they realize they can digitally interact with the environment via touch screen. The biggest challenge of creating a convincing natural environment is building an interactive experience that is unique, with each element of the pond responding to touch in a way that is nearly identical to what someone might see at an outdoor koi pond with live fish and plants.”
– Mark Castro, Western Territory
Sales Manager at TSItouch
The koi pond also features night mode and sleep mode, giving the bank the ability to customize the appearance further and conserve energy when not in use. Night mode is tied to the time of day and automatically adjusts screen brightness depending on the hour. The screens remain on but darken significantly at night before gradually returning to full brightness as the sun rises. Sleep mode enables the bank to manually dim the screens for a period of two, four, six or eight hours, with the displays powering back up as soon as someone touches one of the screens.
The project was a success and the virtual koi pond has quickly become a popular gathering point for employees during breaks and after work hours. Using technology to infuse natural elements to the bank’s common area achieved the intended result of giving employees a calming place to center themselves and connect with nature while still in the workplace.
